Inspection of vacuum cleaners

Views: 4     Author: Site Editor     Publish Time: 2019-12-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Ⅰ. inspection of the dust collection system:



1. Airflow suction power (W) test: when the vacuum cleaner consumption power in 200W below, 300-400w, 500W above, the airflow suction power should be 10%, 20%, 30% of the consumption power;



2. Vacuuming test: including carpet vacuuming test, hard ground vacuuming test, hard ground vacuuming test with holes and joints, and furniture furnishings vacuuming test, should meet the standard requirements;



3. suction test: including the test of suction from carpets and furniture covers;



4. total dust collection test: with the new filter dust bag, according to the specified type of dust, distribution speed (20±2g/min) test.During the test, the air flow gradually decreases. When the air flow decreases to 40% of the initial value, stop the test and weigh the total weight of the dust in the dust collection bag.



5.  discharge air dust test: used to test the effect of dust filter, at the same time to find whether there is a vacuum cleaner internal leakage phenomenon;



6. suction nozzle on the carpet moving resistance: when working with the spring scale test, check the performance of the suction nozzle.



Ⅱ. Inspection of electrical parts:



1. Voltage fluctuation performance test: at the rated frequency, when the voltage and rated value difference of ±10%, the vacuum cleaner can still work normally;Starting performance test: at the rated frequency, 90% rated voltage, the motor rotor in any position, can make the vacuum cleaner start;



2. input power: in the rated frequency, rated voltage, the vacuum cleaner in the standard test state operation, when the power consumption reaches a stable state, the input power must not exceed the rated input power 10%;



3. Temperature rise: the highest ambient temperature is 40℃, the insulation of the motor winding is A, E, B, F, H class, the temperature rise of the winding should be 60,75,80,100,125 ℃(measured by the resistance method);



4. Overspeed test: at the rated frequency, 130% rated voltage, the suction nozzle of the vacuum cleaner will be closed, run for 30s, no abnormal conditions;



5. Switch operating life: under the rated voltage, maximum load current and corresponding power factor, switch 20 times per minute, a total of 5000 times.Under the rotor blocking current and power factor at the rated frequency of 120% of the rated voltage, switch 4 times per minute for a total of 5min.



6. insulation resistance: use 500 v megohmmeter test, the insulation resistance between the live part and shell should be not less than 2 m Ω;



7. Voltage resistance strength: between the live part of the vacuum cleaner and the shell, should be able to withstand the ac 1500V voltage test, lasting 1min, without flashover and breakdown;



8. leakage current test: when 1.06 times the rated voltage is applied to the vacuum cleaner, the leakage current should not exceed 0.75ma;



9. Noise test: should be carried out in semi-silenced room, the average noise of vacuum cleaner should not exceed 70dB.



10. Vacuum cleaner to everyone's life has brought a lot of convenience, let us in the cleaning can be more relaxed, now has become a good helper of our home life.



Nanjing Blue Sky Filter Co., Ltd. produces various vacuum cleaner accessories.

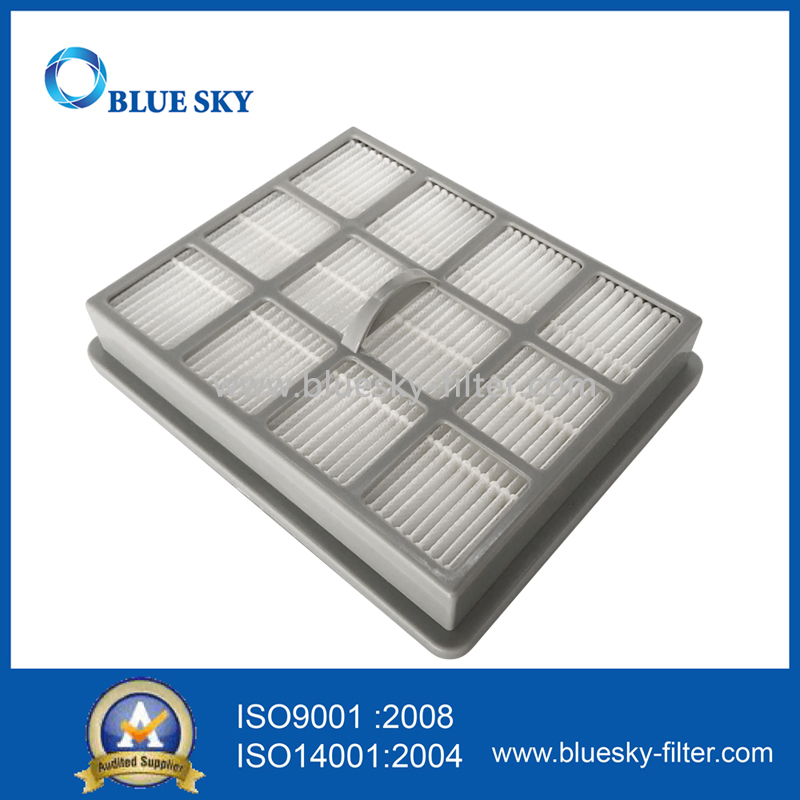

Gray Replacement Panel Square Vacuum Cleaner PET Filters
