Air Cleaning Equipment Clean Room Air Purifier Laminar Flow Hood FFU Fan Filter Unit with HEPA Filter

Share to:

Air Cleaning Equipment Clean Room Air Purifier Laminar Flow Hood FFU Fan Filter Unit with HEPA Filter

Name: Air Cleaning Equipment Clean Room Air Purifier Laminar Flow Hood FFU Fan Filter Unit with HEPA Filter
Brand: Blue Sky Filters
Rating: 5.0 (89 reviews)

5 0 Reviews

Model:
BS1532
Brand:
Blue Sky Filters
Code:
8421999000

Availability:

Quantity:



Inquire Add to Basket

Product Details of Air Cleaning Equipment

Part Name	Air Cleaning Equipment Clean Room Air Purifier Laminar Flow Hood FFU Fan Filter Unit with HEPA Filter
Part NO.	HEPA Filter
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Optical Instruments, Semiconductor

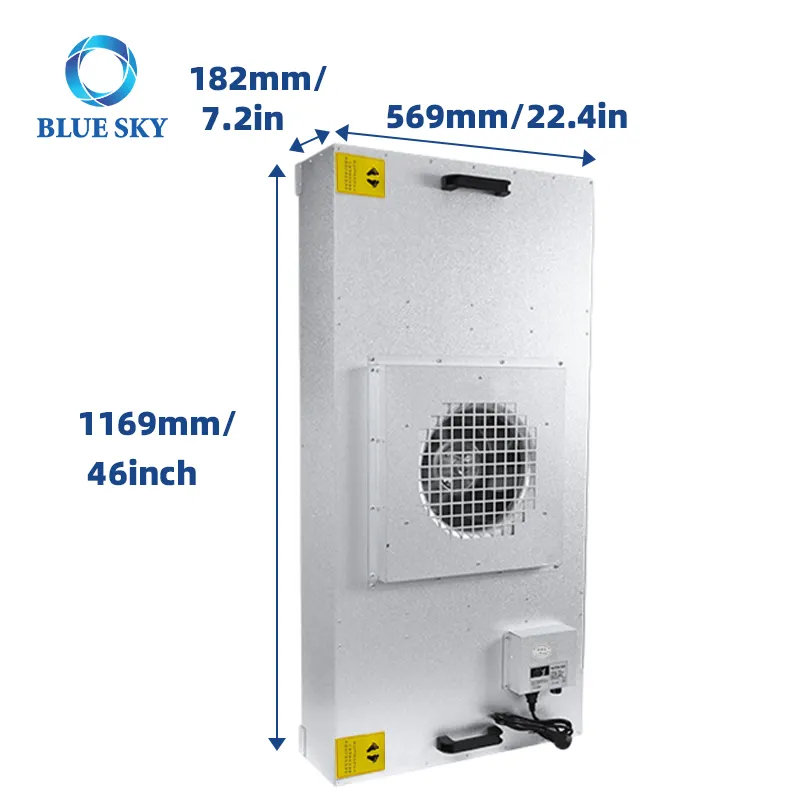

Sizes	1175x575x230mm/46x22.6x9inch(Customized)
Colour	Silver White(Customized)
Structures	Aluminum Frame and Glassfiber
Filtering Efficiency Grade	H13 H14 99.995%@0.3um(Customized)
Application	100 Lab / Laboratory Clean Room
Air Volume	1000 (m3/h)
Special Properties	High Dust Holding Capacity, Easy Installation, Long Life
Packaging	(Customized)

Air Cleaning Equipment


1175*575 AC Single Fan Metal Impeller FFU Specifications
Project name	Project content	Specification	Remark
1、FFU Main Technical Parameters
Box parameter	Box material	Coated with aluminum zinc plate
	Box size	1175575225mm
	Box thickness	0. 8mm
	Material manufacturer	Baosteel/United
Power source parameter	Power source	Single-phase AC220V 50HZ
Power source parameter	Power source access mode	National standard three insert, quality word inser
Motor parameter	Motor type	AJ400	Silent pure copper
	Motor type	Ac inner rotor	3C certification
	Motor speed	950-1120rmp	three-tap
	Motor insulation class	B class
	Pelling life span	More than 3 years	Continuous operation
Impeller parameter	Impeller type	400# rearward
Impeller parameter	Impeller material	Corrosion resistant aluminum alloy impeller
Performance parameter	Mean wind speed	0.45m/s士20%
	With high efficiency filter air volume	1080CMH
	Sound pressure level (1.5 m below screen)	≤60dB(A)	The ceiling height is more than 2.5 meters Vibration value
	Vibration value	<0. 8mm/s
	Total pressure	≥230Pa
	Wind velocity unevenness	≤15%

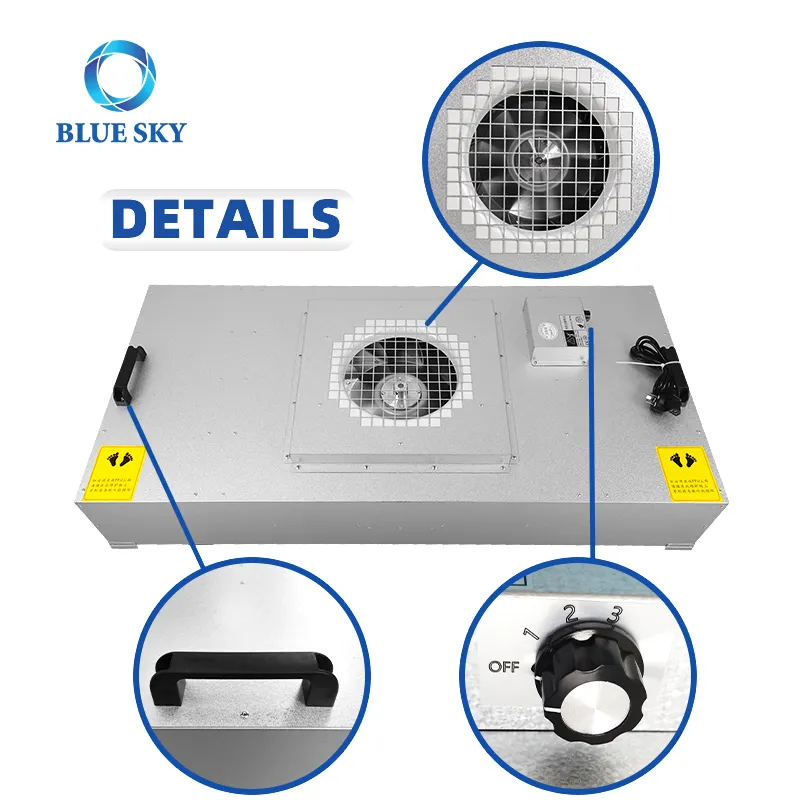

	Control mode	Three speed change
	Power	160-200W
	Unit weight	18KG
2、Efficient Filter Parameters
Structural parameter	Frame material	Aluminium alloy anodizing
	Filter paper ingredients	Non-combustible fiberglass paper
	Filter guard	Double - sided diamond - shaped metal paint protector
	Gasket material	High elastic EVA, no volatile gas generation

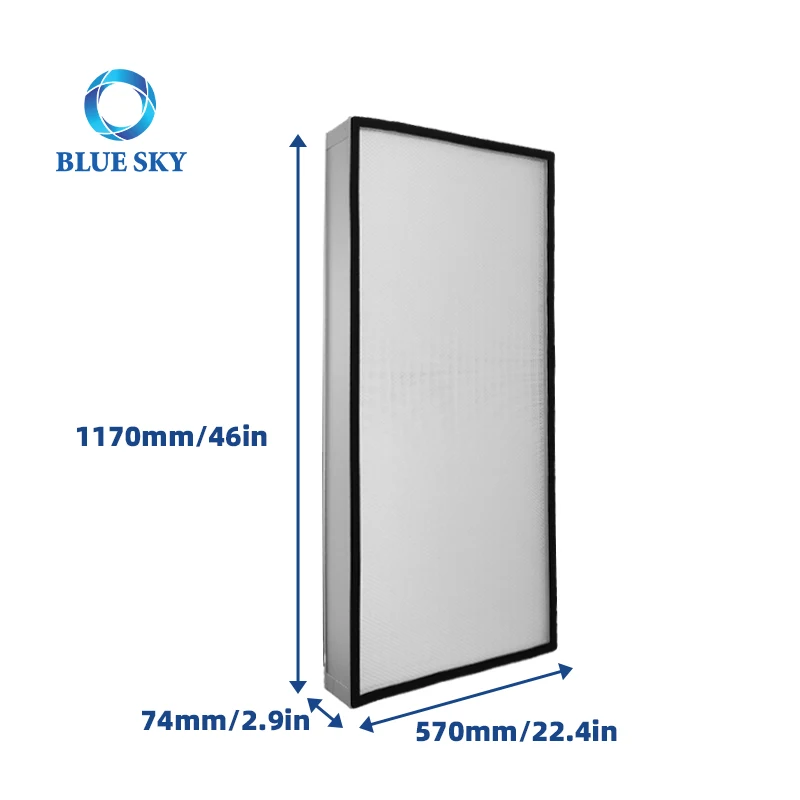

Performance parameter	Size	117057069mm
	Efficiency	99.95-99.995% at 0. 3um	Efficiency can be customized according to customer needs
	Initial resistance	0. 45m/s at 160Pa	±10Pa
	Fire protection certification	FM level
